Alloy Manufacturing

Aluminium die casting parts are made from various Aluminum Alloys. We produce Aluminium Alloys of various grades.

With metal treatment and quality control we have advanced process and infrastructure to manufacture highly complex Alloys required for special applications in engineering components.

Alloy Details ADC 12 / AISI -132 ADC -10 / AISI 9Cu3 ADC – 3
( JIS H 5302 : 2006)		 A - 413
 Si ( %) 10.5 -12 8.0 -11 9.0 -11.0 11.0 -13.0
Fe (%) 0.7 – 1.0 0.0 – 1.3 1.3 Max 1.3 Max
Cu (%) 1.5 – 3.0 2.0 – 4.0 0.6 Max 0.4 Max
Mg (%) 0.3 Max 0.05 – 0.55 0.4 – 0.6 2.0 Max
Mn (%) 0.5 Max 0.55 Max 0.30 Max 0.35 Max
Zn (%) 1.2 Max 1.2 Max 0.50 Max 0.50 Max
Ti  (%) 0.15 Max 0.25 Max 0.30 Max 0.25 Max
Ni (%) 0.3 Max 0.55 Max 0.50 Max 0.50 Max
Sn (%) 0.15 Max 0.15 Max 0.10 Max 0.15 Max
Pb  (%) 0.1 max 0.1 max 0.15 max 0.25 max
Al  (%) BALANCE BALANCE BALANCE BALANCE

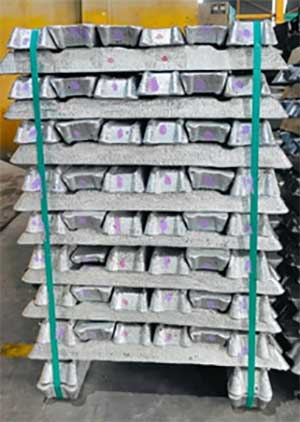

We Provide Quality Ingot

  • Caster Line having 180 Moulds.
  • LPG Gas fired centralized melting furnace (5000 kg) with auto burner & transfer ladle (1000 kg)
  • Two furnaces 5 ton batch size and 3 ton batch size.
  • Chemical composition check by spectro meter for each heat of alloy produced.
  • Metal Drossing , Grain Refinement and modification & Metal Degassing by Nitrogen Purging.
  • Every heat produced in traced with stamping and corresponding quality report.
Caster Line
